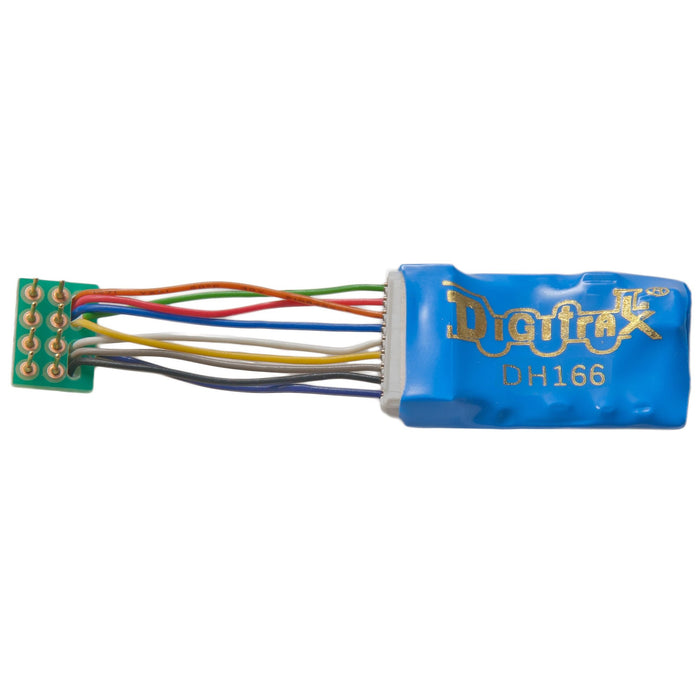

Digitrax DH166PS HO Scale 6-Function

NMRA 8 Pin Plug DCC Decoder

This HO Scale sized decoder with 8 Pin NMRA Plug provides easy installation in many locomotives. 1.5 Amp / 2 Amp Peak current rating.

FEATURES:

• .672” x 1.074” x .259”
• 17.08mm x 27.28mm x 6.6mm
• Digitrax Easy Connect 9 Pin Harness
• 1.5 Amp/2 Amp Peak Current Rating
• 6 FX3 Functions, 0.5 Amp Total Function Current Rating
• Program CVs using any Digitrax Compatible Control system without having to buy any extra equipment.

SERIES 6 DECODER FEATURES:

• 2 Digit and 4 Digit Addressing.
• Basic, Advanced & UniVersal Consisting.
• SuperSonic motor drive for silent operation.
• Scaleable Speed Stabilization ( Back EMF) for smooth operations.
• Direct mode programming.
• Decoder Reset CV with or without speed table reset.
• Transponder Equipped ready for transponding on your Layout.
• Motor Isolation Protection helps prevent damage to your decoder.
• DCC Compatible.
• FCC Part 15, Class B RFI compliant.
• Digitrax “No Worries” Warranty.

FX3 Function outputs for prototypical lighting effects and on/off control:

• Constant Brightness Lighting with directional or independent control.
• Realistic Effects like Ditch lights, Mars lights, strobes, and many more
• FX3 & Standard Function Qualifiers operate functions based on direction,
• F0 on or off, direction and F0, and whether loco is moving.
• FX3 effects optimized for selectable LED or lamp operation
• Configurable FX3 Pulse Function available on all function outputs.
• Function Remapping for custom function setup.
• Master Light Switch turns off all lights & functions with one keystroke.
• Advanced Consist Function Controls

Digitrax LocoMotion® System-Your locomotives look like the real thing.

• The Digitrax LocoMotion System makes them run like the real thing, too!
• Torque Compensation for smooth as silk silent operation.
• 128 Speed Step operation (14 or 28 steps can also be used).
• Momentum with acceleration and deceleration.
• Normal Direction of Travel is user selectable.
• Switching Speed feature for easier and faster access to yard speeds.
• 3 Step Speed Tables set start, mid and max voltage for custom control.
• 28 Step Speed Tables with 256 level resolution for precise control.
