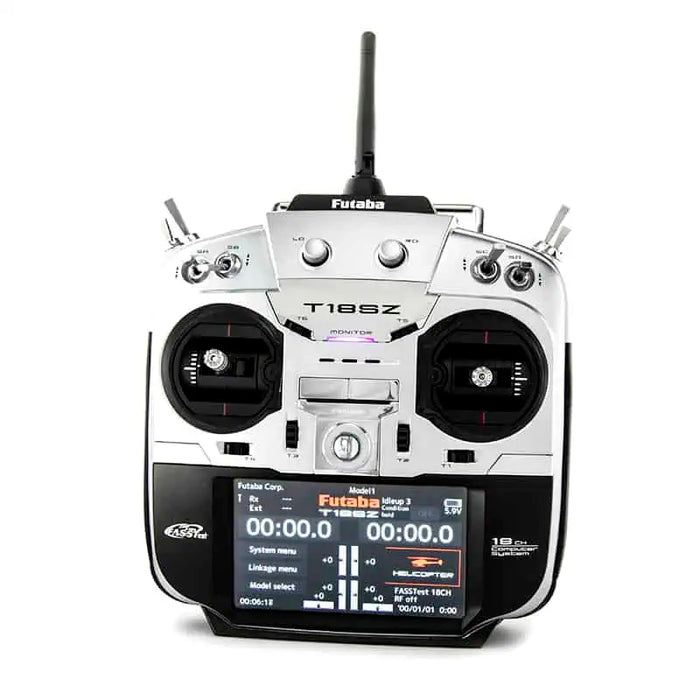

Futaba 18SZ 18-Channel FASSTest 2.4 GHz Air Transmitter with R7208SB Receiver

18-Channel FASSTest 2.4 GHz Air Transmitter with R7208SB Receiver

FEATURES:

• FASSTEST SYSTEM: The 18SZ transmitter has adopted the bidirectional communication system “FASSTest”. Data from the receiver can be checked in your transmitter. FASSTest is a maximum 18 channels 2.4 GHz dedicated system.
• COLOR TOUCH SCREEN LCD: T18SZ has an HVGA 4.3 inch, full-color backlit LCD touch screen. The screen is transflective which enables both indoor and outdoor visibility.
• S.BUS2 SYSTEM: By using the S.Bus2 system multiple servos, gyros and telemetry sensors are easily installed with a minimum amount of cables.
• MODEL TYPES: Multicopter. 8 swash types are available for helicopters. 7 types of main wings and 3 types of tail wings are available for airplanes and gliders. Functions and mixing functions necessary for each model type are set in advance at the factory.
• LIFE BATTERY: The 18SZ is operated by a 6.6 V/2,100 mAh Lithium Ferrite battery.
• SD CARD (SECURE DIGITAL MEMORY CARD) *NOT INCLUDED: Model data can be saved to an SD card (SD: 32MB – 2GB, SDHC: 4GB-32GB). When T18SZ transmitter software files are released, the software can be updated by using an SD card update.
• EDIT BUTTON: Two edit buttons are provided, and the operating screen can be immediately “Returned” to the HOME screen during operation. Setting operation can be performed easily by combining this button with a touch sensor.
• VIBRATION FUNCTION: Selects a function that alerts the operator to various alarms by vibrating the transmitter in addition to sounding a buzzer.
• SPEECH FUNCTION: A function is equipped which allows the system to provide telemetry data audibly. This function can also be utilized with commercially available earphones.

SPECIFICATIONS:

• TRANSMITTER:
  • FREQUENCY: 2.4 GHz band
  • SYSTEM: FASSTest18CH, FASSTest12CH, FASST MULT, FASST 7CH, T-FHSS, S-FHSS, switchable
  • POWER SUPPLY: 6.6 V FT2F2100BV2 LiFe battery
  • FREQUENCY BAND: 2.4 GHz
  • RF POWER OUTPUT: 100mW EIRP

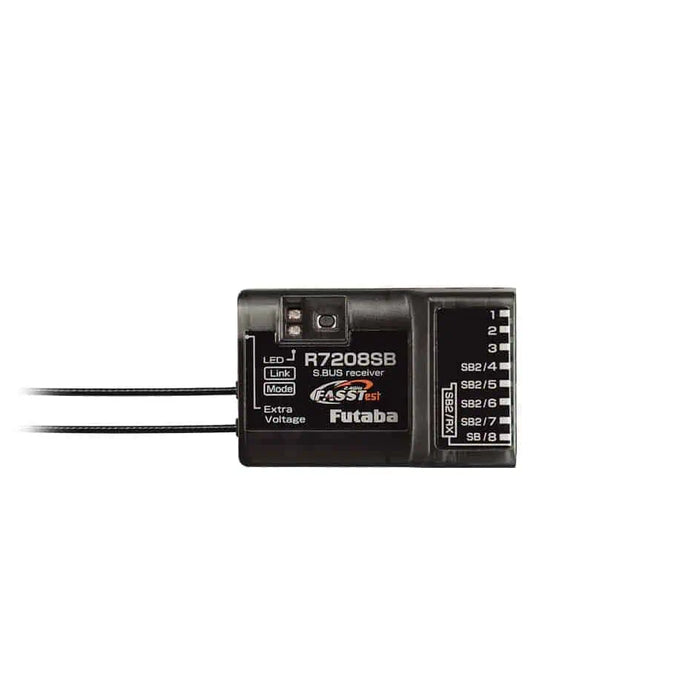

• R7208SB RECEIVER:
  • SIZE: 24.9 x 47.3 x 14.3 mm, 0.98 x 1.86 x 0.56 in
  • WEIGHT: 12.0 g, 0.42 oz
  • POWER REQUIREMENTS: 6.6 V LiFe Battery
  • CURRENT DRAIN: 75 mA
  • RF POWER OUTPUT: 25 mW EIRP

INCLUDES:

• T18SZ Transmitter
• Air Version includes ratcheting throttle
• R7208SB Receiver
• FT2F2100BV2 LiFe Battery* and Charger
• Switch Harness
• Mini Driver
