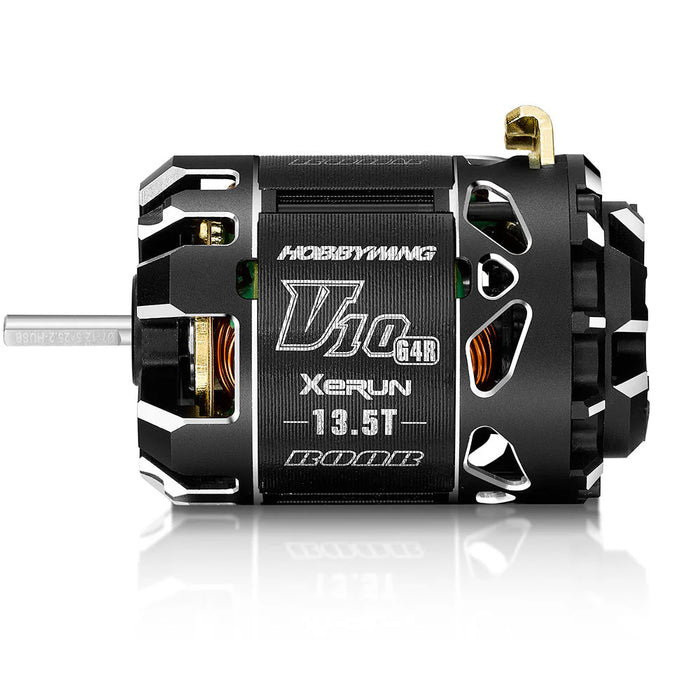

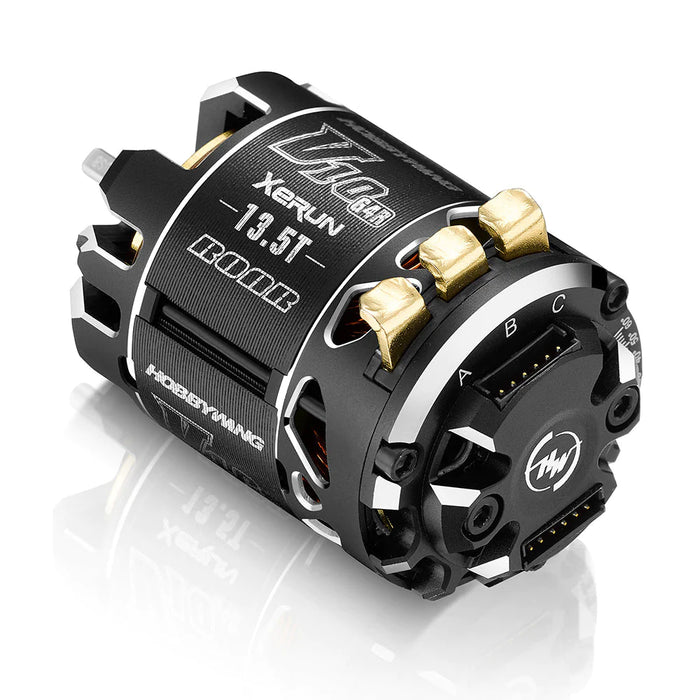

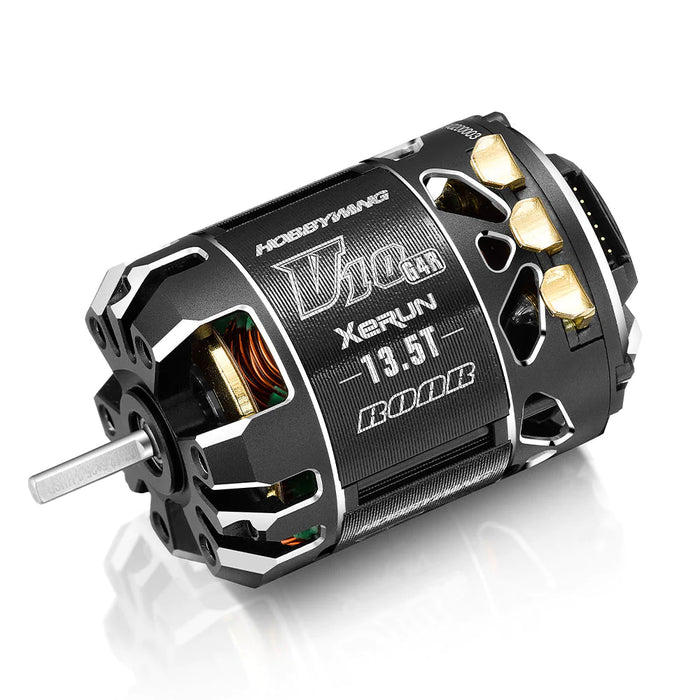

HOBBYWING 30401746 XeRun V10 G4R 13.5T Brushless Motor

XeRun V10 G4R 13.5T Brushless Motor

FEATURES:

• Excellent performance, specially designed for 1/10 -1/12 STOCK racing. Designed to pair with HOBBYWING XR10 Stock Spec G2 ESC
• The innovative outer diameter structure of fully exposed stator core maximizes the heat dissipation area and the rear end of the motor is a big opening structure to further improve the heat dissipation effect.
• Dual sensor interface design to meet various wiring/layout requirements.
• The special copper bar is customized and the spacing of copper bar is widened, which greatly facilitates the operation of soldering wire.
• The built-in high precision Hall sensor combined with the high precision and balanced rotor guarantee outstanding linearity of the motor.
• The use of high-performance stator core, 220°C high-temperature-resistant enameled wire, high precision and high strength bearings, and copper solder tabs with super current endurance guarantees outstanding

SPECIFICATIONS:

• ROAR Approved: Yes
• Turns: 13.5T
• kV Rating: 4100kV
• Outer Diameter: 35.8mm
• Length: 51.3mm
• Shaft Diameter: 3.175mm
• Weight: 158g
• Poles: 2
• Front Bearing: 9x4x4mm
• Rear Bearing: 8x3x4mm
• No Load Current: 5.4A
• Adjustable Timing: 20-60 degrees
• Applications: 1/10th Stock Class Racing
• Input Voltage: 1-2S LiPo (3.2-7.4V)
