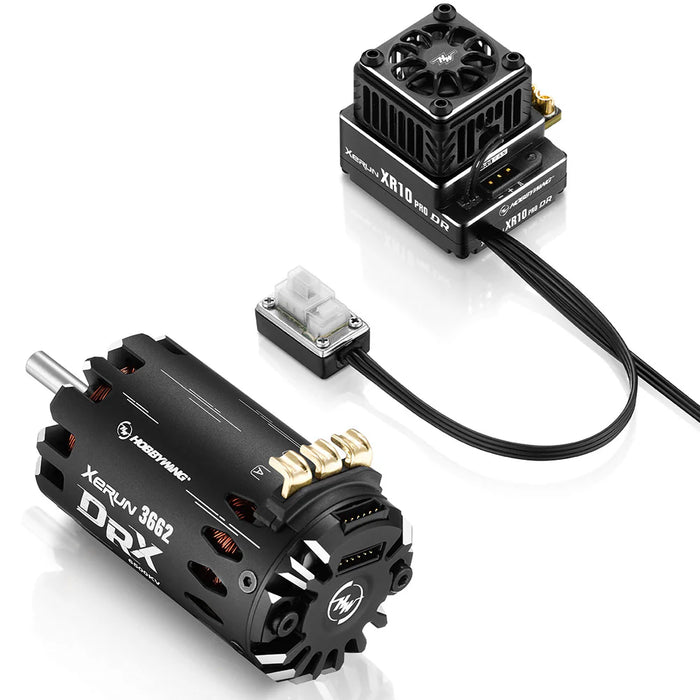

HOBBYWING 38020435 XeRun XR10 ESC and DRX 3662 6500KV Brushless Motor Combo

The Hobbywing XR10 DRX 1/10 No Prep Drag Racing Sensored Brushless ESC and DRX 3600 Motor Combo is engineered for 1/10th No Prep Drag racing, providing racers with precise control and optimized performance. Designed with a unique Hobbywing trade secret, the ESC handles aggressive current while minimizing heat generation, ensuring maximum efficiency and power delivery! This ESC and motor combo is the perfect choice for unmatched power, control and efficiency.

FEATURES:

• Powerful 32-bit M4 microprocessor for precise drag racing control
• Optimized software from the championship-winning XR10 PRO series
• 9900uF ultra-large capacitor for stable voltage during extreme power output
• Frameless fan design for maximum heat dissipation
• Built-in Bluetooth for quick, on-the-fly programming and tuning
• High-performance hardware specifically tailored for drag racing
• Adjustable powerful BEC, RPM control, boost timing and turbo timing
• Steel rotor sleeve holds up to the extreme demands of drag racing
• Dual sensor port for wiring convenience

SPECIFICATIONS:

• ESC:
  • Motor Type: Brushless - Sensored/Sensorless
  • Input Voltage: 2S LiPo (Only)
  • Continuous Current: 200A
  • Peak Current: 1200A
  • Dimensions (LxWxH): 1.48x1.46x1.30in (37.7x37.2x33.2mm)
  • Weight: 4.83oz (137g)
  • Recommended Motor Size: 3652/3662(540/550) size motors < 9800kV
  • BEC Voltage: 5-7.4V
  • BEC Continuous Current: 5A

  • Motor Connector: Solder
  • Battery Connector: Solder
  • Programmable: Yes, with OTA or LCD Program Box Pro*
• MOTOR:
  • Size: 6500kV
  • Type: Brushless - Sensored
  • Input Voltage: 2S LiPo
  • No Load Current: 8.0A
  • Poles: 4
  • Connector: Solder
  • Length: 2.0in (53mm)
  • Diameter: 1.41in (36mm)
  • Shaft Length: 0.125in (3.175mm)
  • Shaft Diameter: 3.18in (0.13mm)
  • Weight: 8.46oz (240g)

INCLUDES:

• (1) Xerun XR10 DRX 200A Drag Racing Sensored Brushless ESC
• (1) Xerun DRX 3600 Drag Racing Sensored Brushless Motor (6500kV)
• Product Manual

Notes:

• *The OTA Programmer (HWA30850400) or LCD Program Box Pro (HWA30502002) is required to read the data. Data includes throttle, voltage, current, temperature, motor RPM, vehicle speed, and other relevant parameters.
• **The G3X ESC is not equipped with Reverse Polarity Protection. Reverse connection of the battery will damage the capacitor and the ESC. Please refer to the owner's manual to ensure proper connections.
