HOBBYWING 38020448 XeRun XR10 Pro G3 ESC and V10 G3 6T Brushless Motor Combo

The Hobbywing XR10 Pro G3 Sensored Brushless ESC and V10 G3 Motor Combo is tailored for competitive 1/10 modified class racing. This ESC combo provides optimal performance, offering racers precise control, improved power delivery, and advanced customization options to adapt to various track conditions. With features like Reverse Polarity Protection*, customizable profiles, and built-in data logging, this bundle gives racers a competitive edge while ensuring long-term reliability and efficiency.

FEATURES:

• 160A continuous current
• Patented Reverse Polarity Protection
• Three customizable racing profiles
• Variable frequency PWM and brake control
• Built-in data logging
• Internal and external switch options
• Motor equipped with built-in Hall sensor
• Balanced rotor for smooth and linear performance
• Easy-to-dismantle motor case for maintenance and part replacement
• High-performance stator core for improved power output

SPECIFICATIONS:

• ESC:
  • Motor Type: Brushless - Sensored/Sensorless
  • Input Voltage: 2S LiPo (Only)
  • Continuous Current: 160A
  • Peak Current: 1200A
  • Dimensions (LxWxH): 1.38x1.32x1.19in (35x33.6x30.3mm)
  • Weight: 3.28oz (93g)
  • Motor Limits:
    • Touring Car: >4.5T
    • Buggy: >5.5T
  • BEC Voltage: 5-7.4V
  • BEC Continuous Current: 5A

  • Motor Connector: Solder
  • Battery Connector: Solder
  • Programmable: Yes, with OTA or LCD Program Box Pro*
• MOTOR:
  • Size: 5500kV
  • Type: Brushless - Sensored
  • Input Voltage: 2S LiPo
  • No Load Current: 4.5A
  • Maximum Output Current: 113A
  • Poles: 2
  • Watts: 415W
  • Connector: Solder
  • Length: 2.01in (51.2mm)
  • Diameter: 1.41in (35.9mm)
  • Shaft Length: 0.52in (13.3mm)
  • Shaft Diameter: 3.17in (0.13mm)
  • Weight: 5.71oz (162g)

INCLUDES:

• (1) Xerun XR10 Pro G3X Stock Spec 1/10 160A Sensored Brushless ESC
• (1) Xerun V10 G3 Brushless 1/10 Electric Motor (5500kV)
• Product Manual

Notes:

• *While the ESC provides reverse polarity protection, the standard capacitor in the ESC does not offer reverse connection protection. Reverse connection of the battery will damage the capacitor.
• **The OTA Programmer (HWA30850400) or LCD Program Box Pro (HWA30502002) is required to read the data. Data includes throttle, voltage, current, temperature, motor RPM, vehicle speed, and other relevant parameters.

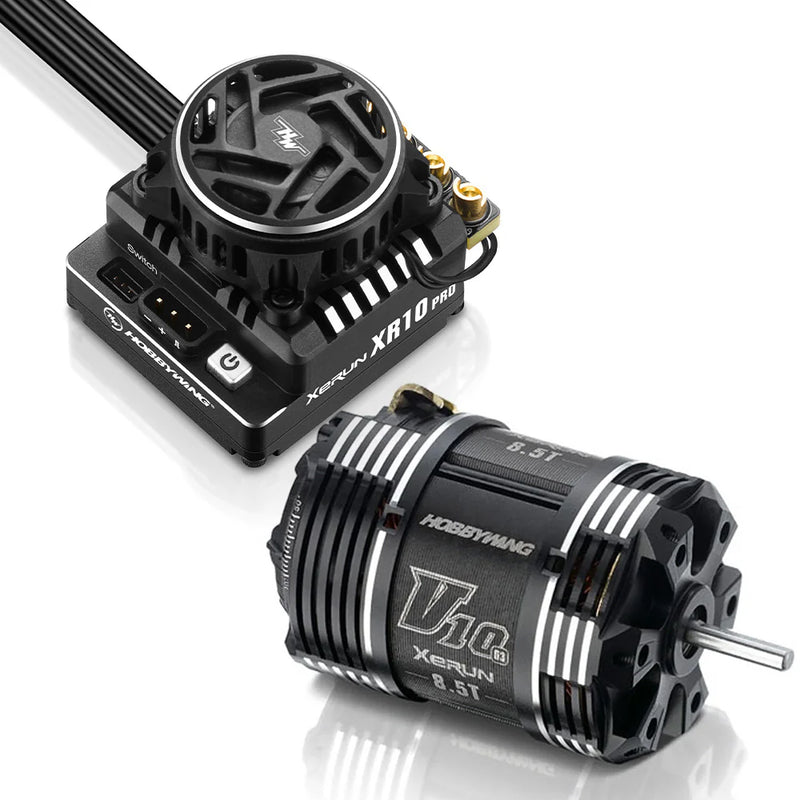

• 8.5T Shown
