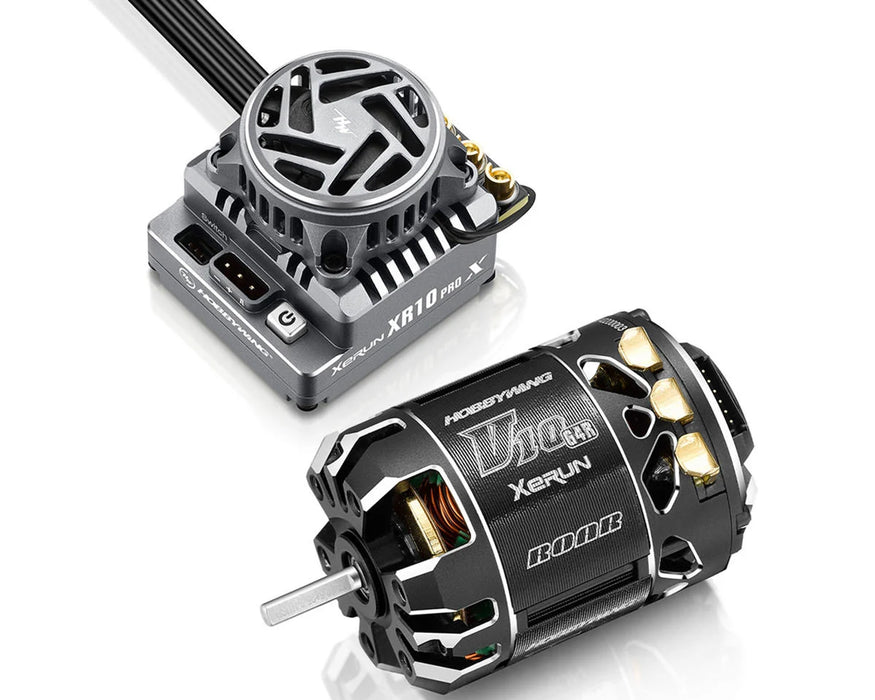

HOBBYWING 38020456 XeRun XR10 Pro G3X ESC and V10 G4R 21.5T Brushless Motor Combo

The Hobbywing XR10 Pro G3X Stock Spec Sensored Brushless ESC and V10 G4R Motor Combo is engineered for 1/10th Stock class racing, providing racers with precise control and optimized performance. Designed with a unique Hobbywing trade secret, the ESC handles aggressive current while minimizing heat generation, ensuring maximum efficiency and power delivery. The ESC has advanced customization features, built-in protections, and data recording*, offering racers the reliability and competitive edge needed to perform at their best. Paired with the powerful V10 G4R Motor, this ESC and motor combo is the perfect choice for unmatched control and efficiency.

FEATURES:

• 160A continuous current
• Hobbywing's trade secret technology for reduced heat generation
• Three customizable racing profiles
• Variable frequency PWM and brake control
• Built-in data recording module
• Internal and external switch options
• Softening function for smoother power delivery
• Motor equipped with exposed stator core for maximum heat dissipation
• Large rear opening on the motor to enhance cooling efficiency
• V10 G4R dual sensor interface for flexible wiring and layout

SPECIFICATIONS:

• ESC:
  • Motor Type: Brushless - Sensored/Sensorless
  • Input Voltage: 2S LiPo (Only)
  • Continuous Current: 160A
  • Peak Current: 1200A
  • Dimensions (LxWxH): 1.38x1.32x1.19in (35x33.6x30.3mm)
  • Weight: 3.58oz (101.5g)
  • Motor Limits: 540-Size 3650 Motor
  • BEC Voltage: 5-7.4V
  • BEC Continuous Current: 5A

  • Motor Connector: Solder
  • Battery Connector: Solder
  • Programmable: Yes, with OTA or LCD Program Box Pro*
• MOTOR:
  • Type: Brushless - Sensored
  • Input Voltage: 1-2S LiPo
  • Poles: 2
  • Connector: Solder
  • Length: 2.02in (51.3mm)
  • Diameter: 1.41in (35.8mm)
  • Shaft Length: 0.55in (13.9mm)
  • Shaft Diameter: 3.18in (0.13mm)

INCLUDES:

• (1) Xerun XR10 Pro G3X Stock Spec 1/10 160A Sensored Brushless ESC
• (1) Xerun V10 G4R Brushless 1/10 Electric Motor
• Product Manual

Notes:

• *The OTA Programmer (HWA30850400) or LCD Program Box Pro (HWA30502002) is required to read the data. Data includes throttle, voltage, current, temperature, motor RPM, vehicle speed, and other relevant parameters.
• **The G3X ESC is not equipped with Reverse Polarity Protection. Reverse connection of the battery will damage the capacitor and the ESC. Please refer to the owner's manual to ensure proper connections.
