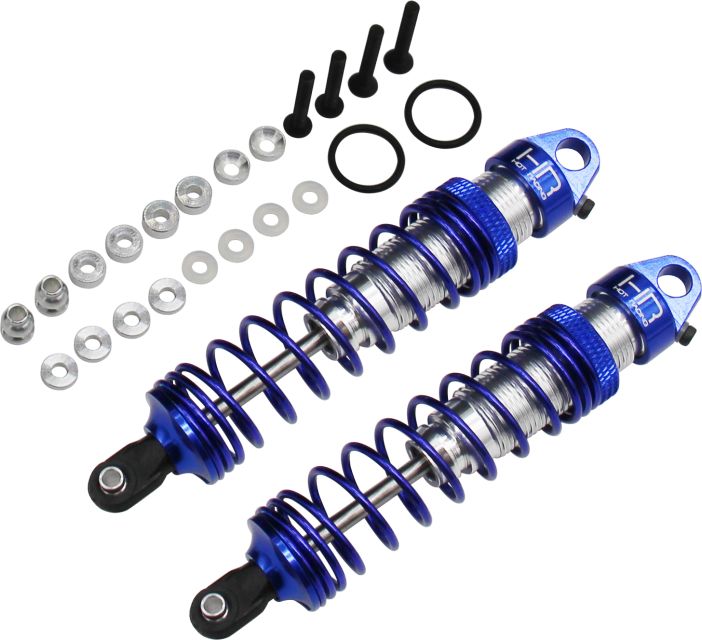

Hot Racing HRATD8100X06 Aluminum 100mm Heavy Duty Big Bore Shocks

2 Pack

Hot Racing 100mm big bore threaded body aluminum shocks for many 1/10th scale off-road vehicles using 100mm shocks. Some applications include, but are not limited to: the Associated SC10; HPI Blitz; Kyosho Ultima SC; Traxxas Bandit rear, E-Maxx, Nitro Rustler/Slash/Sport/Stampede rear, Rustler rear, Slash 2WD rear, Slash 4x4 rear, Stampede 2WD rear, Stampede 4x4 rear, T-Maxx; and and other similar vehicles.

FEATURES:

• CNC machined 6061-T6 billet aluminum shock bodies, collars, caps, and spring retainers
• "Big Bore" threaded shock bodies
• CNC machined 11mm Delrin pistons
• 3.5mm stainless steel shock shafts
• Silver and blue anodized aluminum components
• Vented shock caps with bladder seals for consistent rebound dampening
• Threaded shock collars with o-ring to prevent unwanted movement
• Composite plastic lower shock ends with aluminum balls
• Fully assembled, just add shock oil and bleed

INCLUDES:

• Two (2) assembled shocks
• Two (2) M3x20mm flat head cap screws
• Two (2) M3x18mm button head cap screws
• Two (2) 3mm countersunk washers
• Two (2) 5.9 hollow balls
• Four (4) 1.5mm thick spacers
• Four (4) 3mm thick spacers

SPECIFICATIONS:

• Replaces Traxxas Big Bore XX-Long Shocks: 2662, 3762, 3762A, 7462X
• Extended length: 100mm
• Compressed length: 70mm
• Overall length: 110mm
• Spring: ~5.8lb/in, 1.54mm wire, 13 turn dual rate, 19.3mm OD, 69.5mm long

REQUIREMENTS:

• Silicone shock oil of modeler's choice and bleeding per the typical bladder shock bleeding procedure
• Best used with Team Associated shock Green Slime grease or shock o-ring grease when rebuilding lower seal
• Snap ring pliers when rebuilding lower seal
