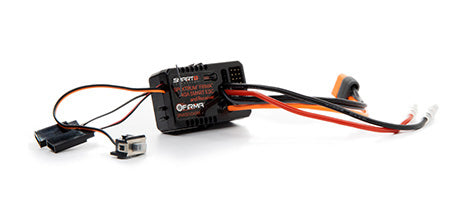

Spektrum SPMXSE1040RX Firma 40Amp Brushed 2-1 SMART ESC and Receiver

Specifications

• Type: Waterproof DSMR ESC/Receiver 2-in-1 with SMART Telemetry

• Dimensions (L × W × H): 54mm × 33.5mm × 20.5mm

• Antenna Length: 31mm

• Channels: 4 (No Throttle Servo Output)

• Weight: 68g

• Band: 2404 MHz – 2476 MHz

• Servo Output Voltage: 6V up to 3A, Shared with Auxiliary Light Connectors

• Telemetry Features: Battery Voltage, Current, ESC Temp, Battery Data (with SMART Battery)

• Battery Input Connector: IC3TM (EC3TM Compatible)

• Voltage Range: 2–3S Li-Po*/5–9S NiMH

• Max Current: 40A Continuous/ 180A Burst

• Motor Connectors: 3.5mm Bullet

• Compatible Motors (Based on Battery Voltage): Brushed, Below 8.4V; Down to 12T, Below 12.6V; Down to 30T


*Default setting for low voltage cutoff is Li-Po. Optional Dynamite DYNS3005 Program Card required to change the Battery Type Setting.
