Traxxas 95076-4 Blue Sledge™ 1/8 AWD 6s Brushless Electric Monster Truck

Click Here to Browse everything for your Sledge

REDEFINING 1/8 SCALE OFF-ROAD
Engineered. Tested. Built to a higher standard. The all-new Sledge is made to exceed your expectations for quality, toughness, and fun. The rock-solid chassis, massive steel drivetrain, ferocious 6s power, and race-inspired handling leave everything else in the dust.

ENGINEERED FOR 6s POWER
Sledge is the only truck in this class with a properly sized, 6s-capable driveline. Bigger gears. More steel. Basically bombproof. Sledge smashes the status quo to be the new standard for extreme 6s durability.

SUPERIOR CHASSIS STRENGTH

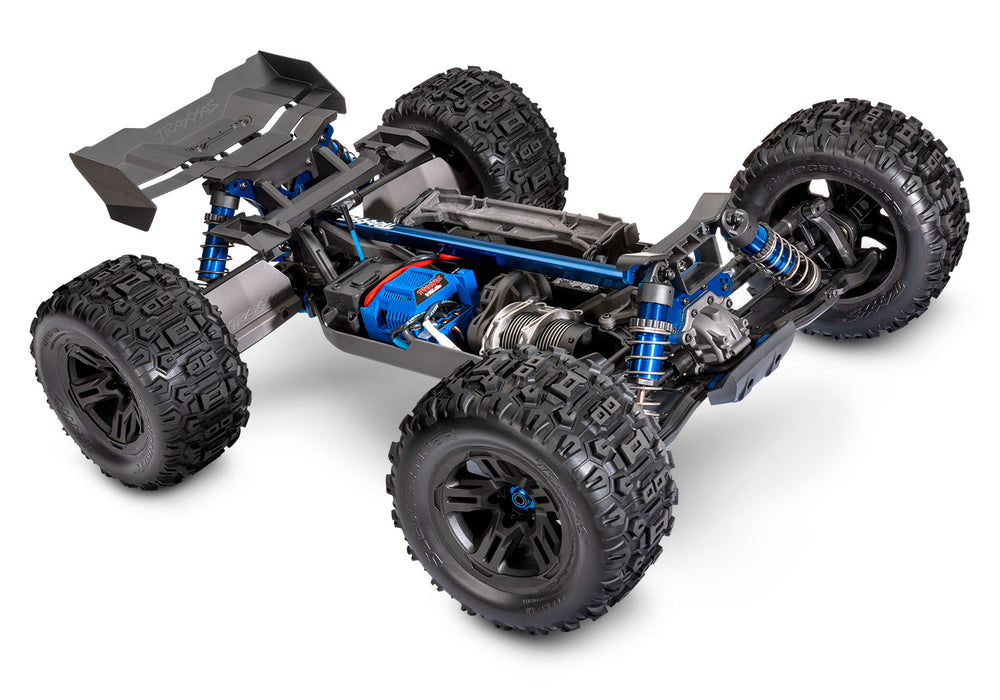

Sledge is engineered to have the strongest chassis in the class. The triangulated chassis structure integrates a deep-formed aluminum plate with a multi-point composite truss system and the patent-pending full-length T-Bar™. Built on a solid foundation, Sledge is strongest where it matters most.

NEW CLIPLESS BODY
Remove and replace the body in just seconds with exclusive patent-pending clipless body solutions engineered by Traxxas. Sledge’s clipless body goes on smoothly with a satisfying snap. The body is designed to come off when YOU release it.

MONSTER SERVO
Sledge is equipped with a high-performance metal gear servo that packs massive torque inside a heat dissipating aluminum center case. Powerful and reliable steering authority is assured with no upgrade required.

VXL-6s POWER SYSTEM
The Velineon VXL-6s features new hardware and new tuning specifically for the 2000kV motor. Together they deliver substantially more power under the curve for increased mid-range punch and hard-charging acceleration you can see and feel.

SLEDGEHAMMER TIRES
Premium Sledgehammer® tires are standard equipment. No tire upgrade required. Durable foam inserts are designed to not bunch up or break down. Patent-pending Traxxas innovation improves the tire bonding process to reduce the chance of a blown-out bead while exploring the upper range of Sledge’s capability.

FEATURES:

• VXL-6s Waterproof Electronic Speed Control
• 6s LiPo compatible
• Integrated cooling fan
• Real-time telemetry via Traxxas Link™
• 3-LED status indicators
• Powered accessory ports
• 10-gauge silicone wire
• Patented Traxxas High-Current Connectors
• Velineon® 2000kV Brushless Motor
• 4-pole 2000kV brushless motor
• 5mm output shaft
• Finned can for better heat dissipation
• Aluminum motor cradle mount
• Supports entire motor
• Reduces flex for longer gear life
• Up to 70+ mph with Two 3s LiPo Batteries
• Traxxas Stability Management® (TSM)
• Improves straight line acceleration and braking on low-traction surfaces
• Never dulls throttle or slows the truck
• Adjusts from off to 100% assistance from the transmitter
• TQi™ 2.4GHz High Output Radio System
• TQi™ 2-channel transmitter
• Automatically stores and loads settings for up to 30 Traxxas Link-enabled models
• Programmable multi-function knob
• Adjustable steering and throttle percentage (dual rates)
• Adjustable steering and throttle sensitivity (exponential)
• Adjustable steering and throttle end points
• High 13ms frame rate and near-zero latency for responsive control
• 5-channel micro receiver (#6533) with fail-safe security
• Patented waterproof receiver box with easy-access plug
• Drivetrain
• Heavy-duty steel driveshafts
• Large 8mm steel stub axles
• Steel dogbone center driveline
• Protective rubber boots on differential inputs
• Transmission
• Mod-1 pinion and spur gears
• Fixed gear mesh system
• Torque-Biasing Center Drive
• Differentials
• Heavy-duty sealed 4-gear design
• Large scale steel ring and pinion gears
• Oversize 8mm output shafts
• Steel drive cups
• Easy-access bulkheads
• Oil-filled GT-Maxx® Shocks
• Longer rear shocks for more travel
• Machined aluminum threaded body
• Extra-large bore and capacity
• Large-diameter damper shaft
• Lower cartridge with dual X-rings
• Height-adjustable spring retainer
• Lower spring perches bolted on
• Suspension
• Performance-optimized geometry
• Ultra-tough composite arms
• Made from our strongest cold-weather material
• Molded insert for clean look
• Rear rock deflectors
• Press-in hinge pins to reduce play
• Oversize molded toe and camber links
• Heavy-duty C-hubs
• Stronger than conventional designs
• Require no adjustments
• Multiple mounting points for suspension tuning
• Chassis
• 3.2mm ribbed aluminum chassis
• Formed edges for improved strength
• Thick T-Bar™ for added rigidity
• Stronger than round bars
• High-strength buttressing on shock towers
• Ultra-thick 5mm 6061-T6 aluminum shock towers
• Rugged locking battery compartment with quick-release door
• Low-CG design for improved handling
• Interlocking components for tight tolerances
• Tough front and rear bumpers double as skid plates
• Hidden wire management for clean appearance
• ProGraphix® Body
• Clipless body mounting system
• Rigid internal frame
• Molded body reinforcements for tear-through protection
• Protective roof skids
• Rugged high-downforce rear wing
• Wheels and Tires
• Huge 6.7” Sledgehammer® all-terrain tires
• TSM-rated construction resists ballooning
• Tough 3.8” black wheels
• Splined 17mm aluminum axle hubs
• Steering
• High-throw bellcrank steering design
• Heavy-duty servo saver with aluminum posts
• Metal servo horn
• Powerful #2275 metal gear servo
• 347 oz-in torque
• Fully waterproof
• Sealed Ball Bearings
• Hex hardware with Rust-Resistant Black Oxide Coating

SPECIFICATIONS:

• Length (including wing): 23.78 inches (604mm)
• Front Track: 18.10 inches (459mm)
• Rear Track: 18.10 inches (459mm)
• Ground Clearance: 1.95 inches (50mm)
• Weight (no battery): 12.74 pounds (5.77kgs)
• Height (overall): 8.43 inches (214mm)
• Wheelbase: 15.10 inches (384mm)
• Shock Length (front): 5.12 inches (128mm)
• Shock Length (rear): 5.67 inches (144mm)
• Tire Diameter: 6.7 x 3.3 inches (170mm x 84mm)
• Wheel Diameter: 3.8 inches (97mm)
• Speed Control: Velineon® VXL-6s (#3485)
• Motor (electric): Velineon® 2000kV Brushless
• Overall Drive Ratio: 17.2 (13/52 motor pinion and spur gear)
• Differential Type: Sealed, hardened steel bevel, limited slip
• Gear Pitch: Module 1.0
• Chassis Structure/Material: 3.2mm aluminum plate
• Brake Type: Electronic
• Drive System: Shaft-driven 4WD
• Steering: Double-shear bellcrank w/metal servo arm
• Wheels & Tires: 3.8” wheels, pre-glued Sledgehammer® Tires & foam inserts; 6.7x3.8
• Radio System: 2-Channel, TQi™ 2.4GHz Transmitter with TSM® receiver
• Servo: 2275 Waterproof, metal-gear (347oz-in torque)
• Top Speed: 70+ MPH with two 3S LiPo batteries and optional gearing (sold separately)
• Skill Level: 4
• Battery Tray: Narrow configuration (L/W/H): 181mm x 50mm x 29/37/45mm*
• Wide configuration (L/W/H): 160mm x 57mm x 29/37/45mm*
• Required Batteries: 4 “AA” (transmitter), Vehicle (see battery finder)
• Motor Specs
• Type: 2000 kV sensorless brushless
• Weight: 14.32oz (406g)
• Length: 2.97 inches (76mm)
• Diameter: 1.65 inches (42mm)
• Connector Type: Traxxas 6.5mm bullet connectors
• ESC Specs
• Input Voltage (cells): 4s–6s LiPo (max: 25.2 volts)
• Case Size: 2.28 inches (58mm) x 2.83 inches (72mm) x 1.81 inches (46mm)
• Weight: 7.30oz (207g)
• BEC Voltage: 6.0 V
• BEC Current Continuous: 10 A
• BEC Current Peak: 20 A
• Reverse Delay: Yes, with lockout
• Ports: RX input, auxiliary fan, Traxxas accessory port
• Servo Specs
• Motor Type: Brushed
• Operating Voltage: 6.0V DC 7.4V DC
• Torque: 347 oz-in 486 oz-in
• Speed: 0.25 sec/60° 0.16 sec/60°
• Weight: 67g
• Gears: Metal
• Output Spline: 25T
• Case: Plastic top/bottom, anodized aluminum center
• Controller: Digital

INCLUDES:

• Sledge, Ready-To-Race® monster truck with Traxxas 2000kV brushless motor
• VXL-6s waterproof electronic speed control with integrated telemetry
• Quick Start Guide
• TQi™ 2.4GHz radio system
• High quality maintenance tools
• Jumper plug (for 4s battery use)

What You’ll Need:

• LiPo Batteries
• Traxxas recommends dual 5000mAh 3-cell 11.1V Power Cell LiPo batteries for maximum performance. Dual 7600mAh 7.4V LiPo batteries or a single 6700mAh 14.8V LiPo battery will operate the vehicle with reduced performance. NiMH batteries are not supported.
• LiPo Balance Charger with iD™
• Traxxas EZ-Peak® Live 4s-capable charger is recommended for easy and fast charging performance (model #2971).
• AA Alkaline Batteries
• Four AA alkaline batteries for the transmitter.
