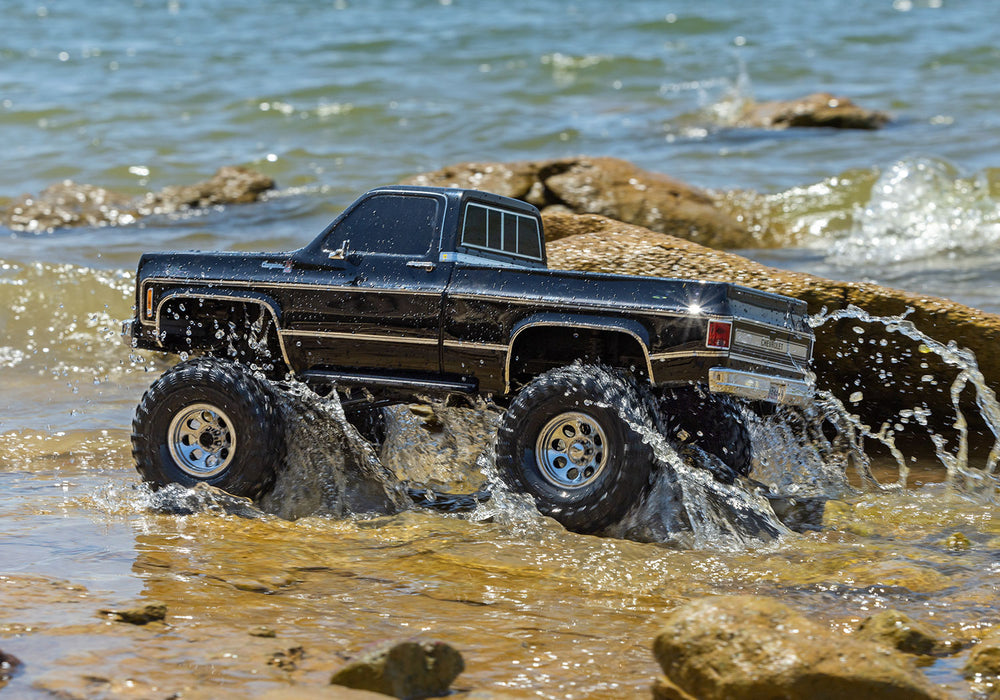

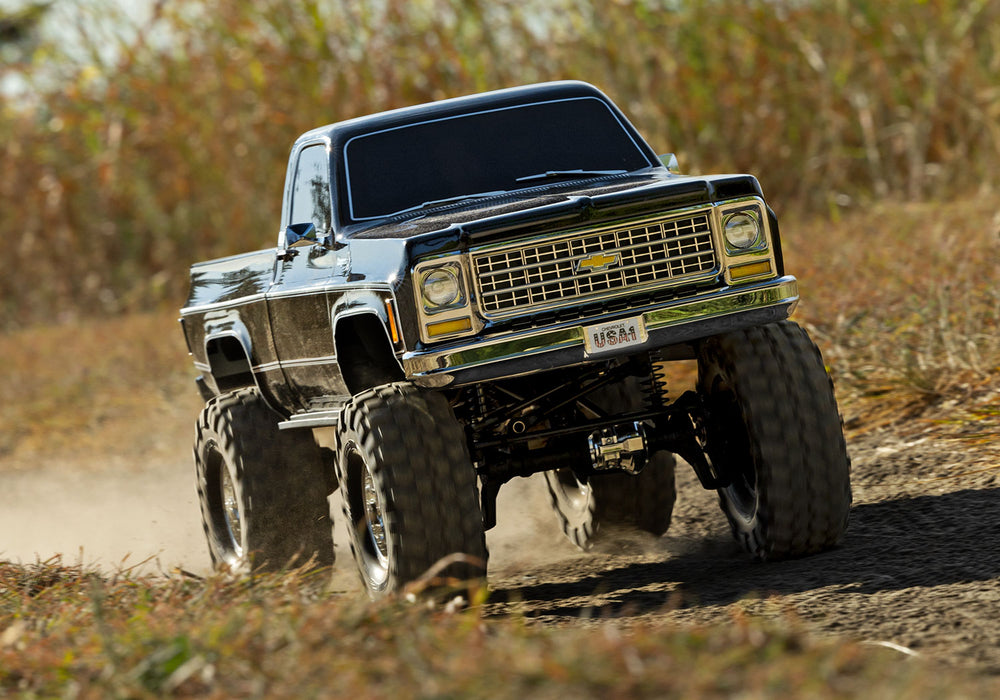

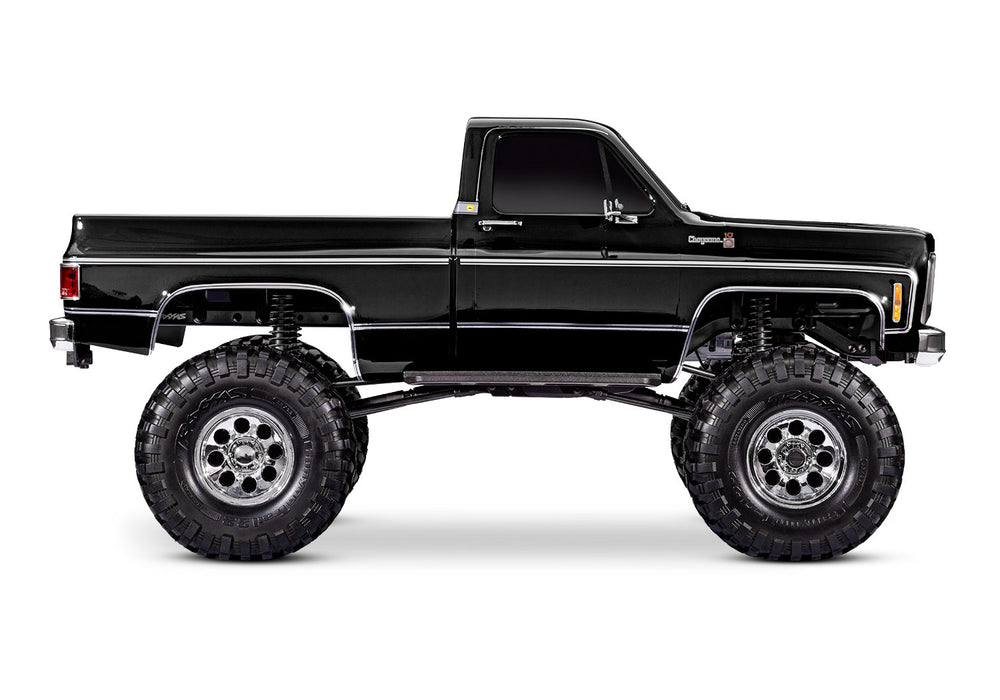

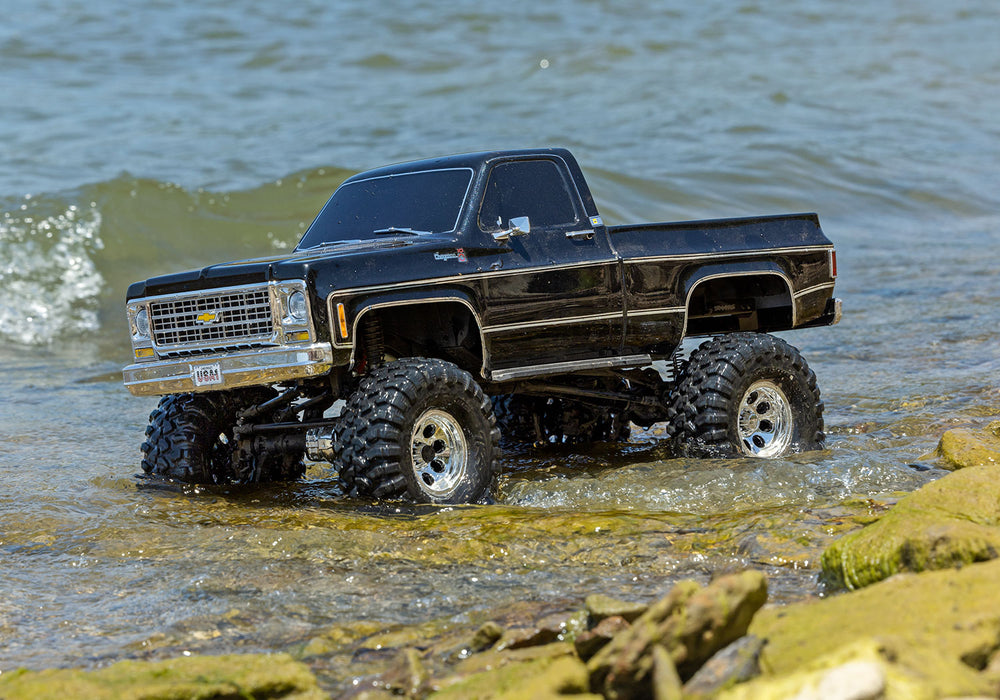

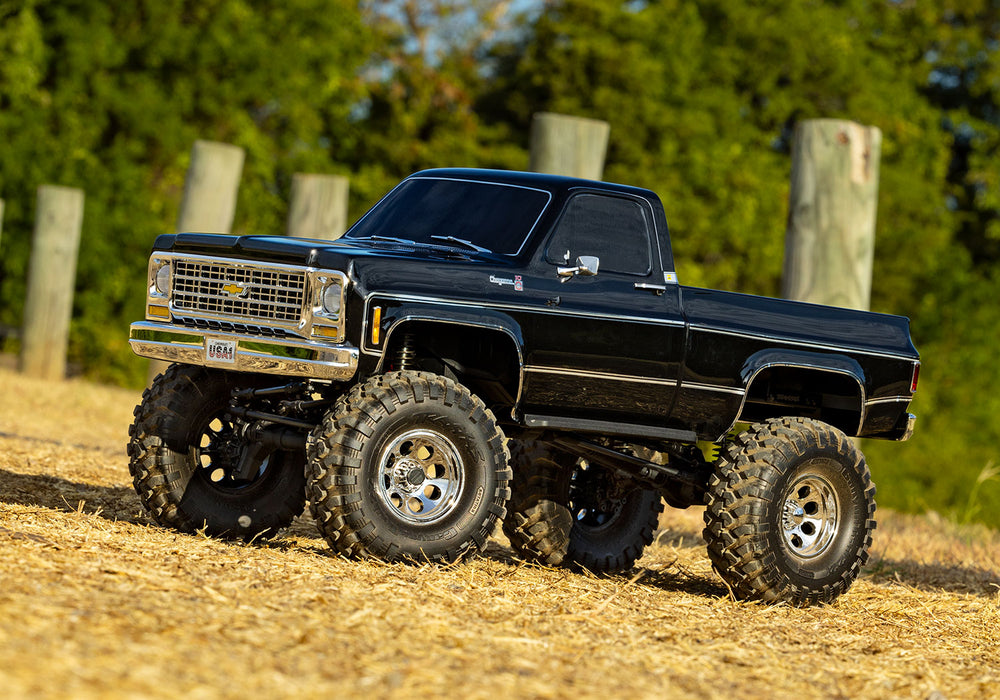

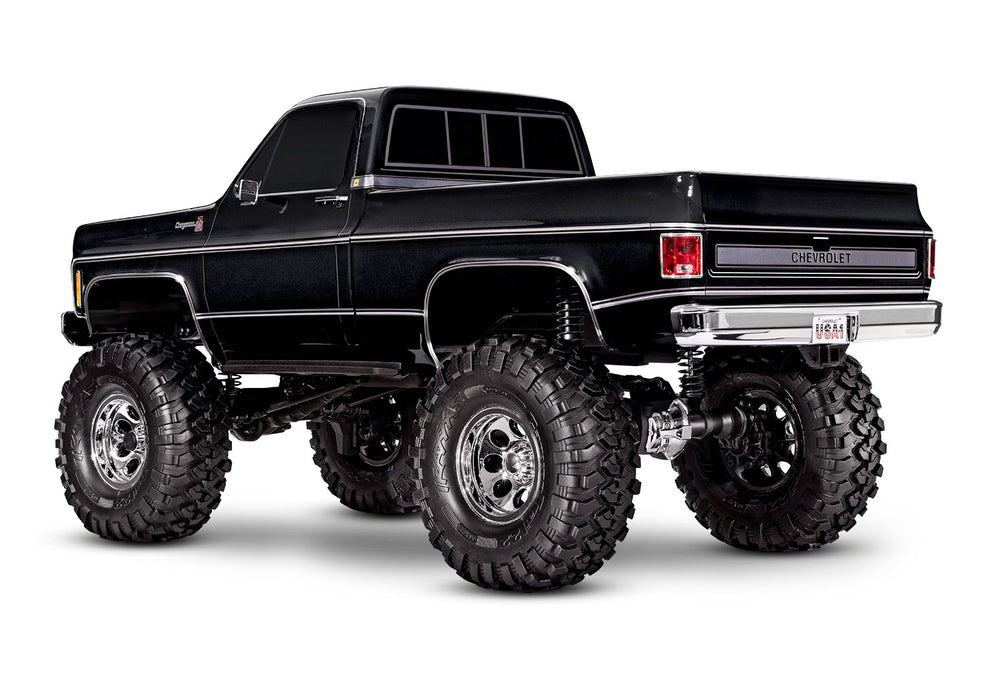

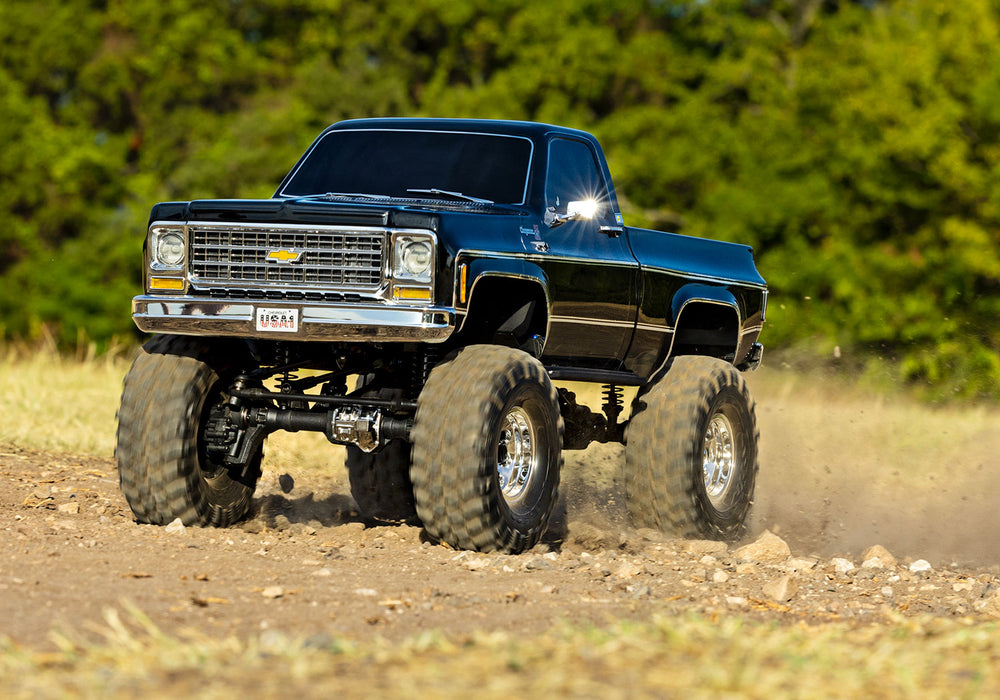

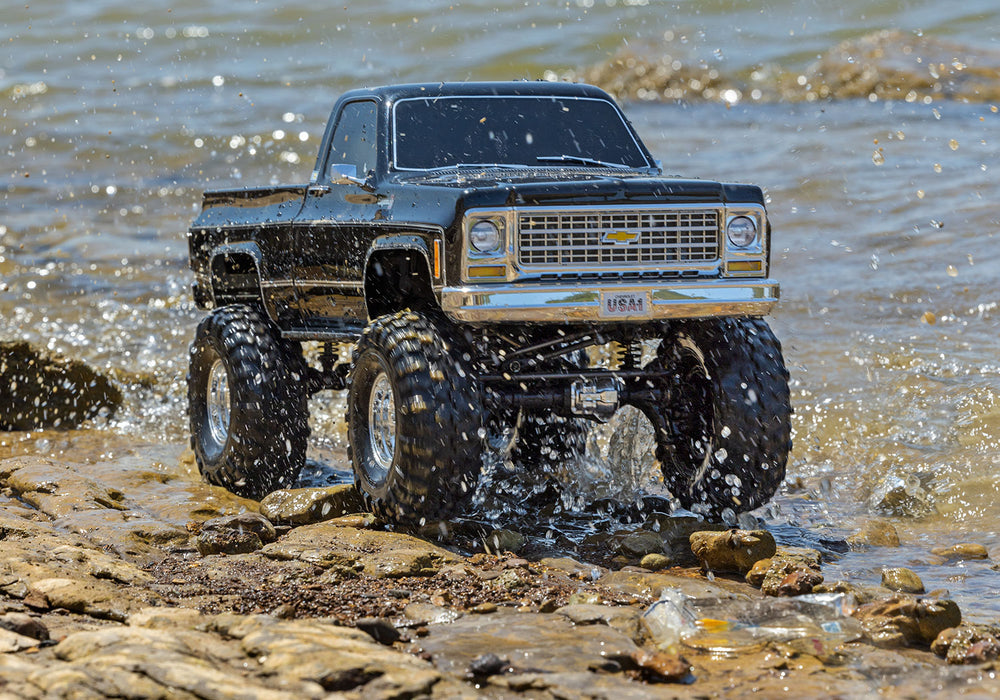

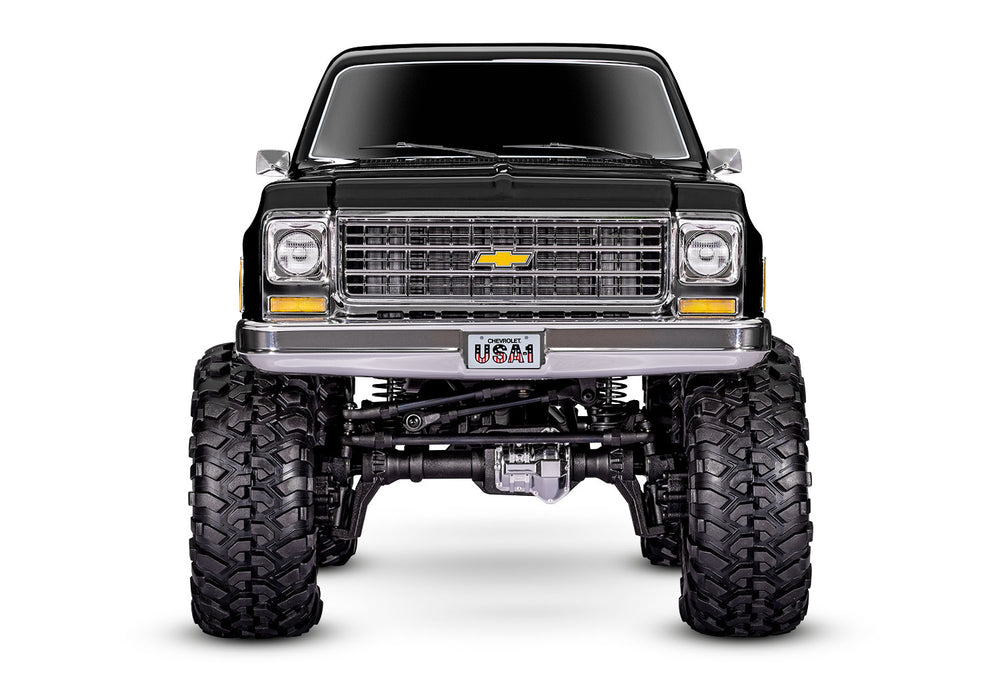

Traxxas 92056-4 TRX-4 RTR Chevrolet K10 Cheyenne High Trail Edition Black Trail Crawler

Traxxas elevates scale adventure with the lifted TRX-4® Chevrolet® K10 High Trail Edition. Thanks to its factory-installed Long Arm Lift Kit and oversize tires, the highly detailed K10 replica body stands over an inch taller than our standard TRX-4. The K10’s extended wheelbase further enhances the TRX-4’s already legendary off-road capability for even more fun on the trail. The TRX-4 High Trail Edition is the perfect vehicle for the driver who wants it all: extreme all-terrain capability, stunning scale looks, and Traxxas-Tough™ durability.

The factory-installed Long Arm Lift Kit raises K10 High Trail™ Edition over an inch taller for superior ground clearance. Large 2.2” mag wheels and Canyon Trail tires tame even the most technical trails to extend your scale adventures farther than ever before.

K10’s steel frame rails extend the wheelbase out to 336mm to capture the pickup’s real-world proportions perfectly. A longer wheelbase also translates into greater climbing stability and a smoother, more stable ride over rough terrain.

K10’s clipless body holds tight on the trail but releases in just seconds to access the chassis. This hidden latching system adds a new level of convenience and scale realism to the TRX-4 by removing traditional body clips which can interrupt the body’s clean lines.

FEATURES:

• Officially Licensed 1979 Chevrolet K10 Pickup Body
• Scale details: grille, chrome bumpers, side mirrors, door handles, and wipers
• LED-ready headlights and tail lights
• Authentic decal sheet

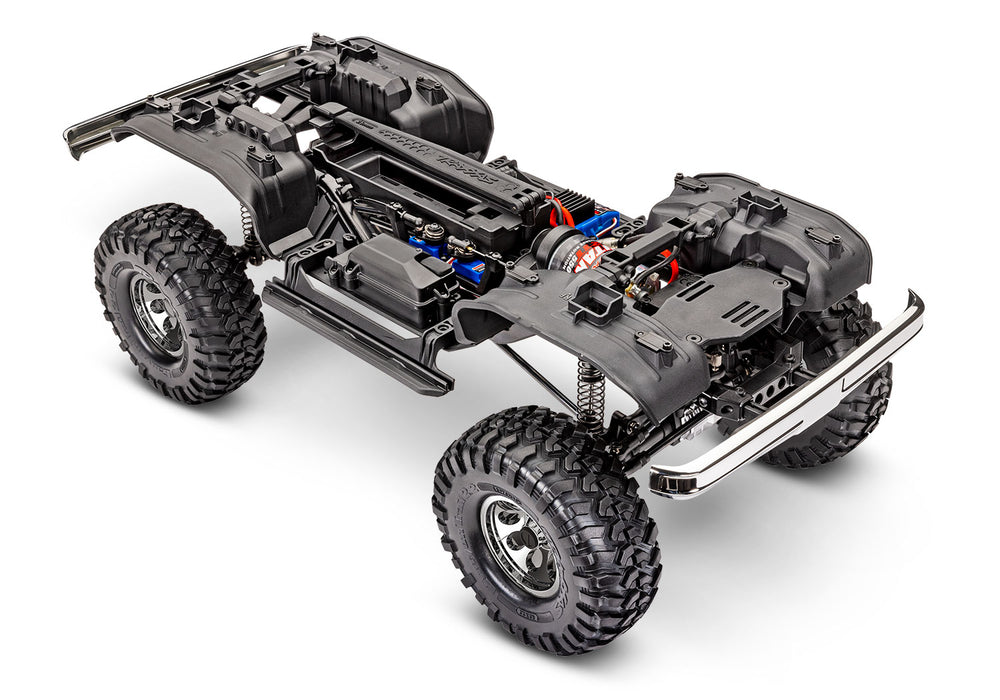

• Full Nylon composite wheel wells and floor pans
• Clipless Body mounting
• Clipless design for smooth body appearance
• Rugged internal body cage for added rigidity
• Body details mount directly to internal frame
• Trail-tuned XL-5 HV Waterproof Electronic Speed Control
• Fully waterproof design
• Five drive profiles
• Sport Mode — forward / brake / reverse
• Race Mode — forward / brake / no reverse
• Training Mode™ — 50% forward / 100% brake / 50% reverse (patented)
• Trail Mode — forward / brake / reverse / with trail-tuned drag brake in neutral
• Crawl Mode — forward / instant reverse - no neutral with 100% hill holding brake
• Traxxas EZ-Set® one-button setup
• Large, efficient heat sink
• Wide voltage latitude 6–7 cell NiMH (7.2–8.4V) and 2–3s LiPo (7.4–11.1V)
• Two stage low voltage protection (LVD)
• Motor
• Powerful Titan® 21T reverse rotation motor with internal cooling fan
• Precision, preset gear mesh adjustments
• Motor retention separate from gear mesh
• Factory-Installed Long Arm Lift Kit
• Increases ground clearance over 1”
• Maintains precise steering geometry
• Accommodates oversize 2.2” wheels and tires
• Extended Wheelbase
• Long 336 mm wheelbase for improved stability
• Full-length 1.5 mm steel frame rails
• Bumpers adjust fore and aft
• Rugged rock rails adjust for width
• Wire routing clips integrated into frame rails
• Portal Axles
• Increase ground clearance
• Eliminate torque twist
• Steel gears
• Improve axle geometry and reduce strain on driveshafts
• Drivetrain
• Full-time shaft driven 4-wheel drive
• Tough 6 mm stub axles
• Steel front CV driveshafts
• Hardened steel rear axle shafts
• Remote locking steel gear differentials with cable-actuation
• Steel gear transfer case
• Innovative Battery Compartment
• Hinged battery strap allows quick and easy battery access
• No pins to lose
• Accommodates different height batteries
• Accepts full-size long battery packs
• Integrated compartment accepts smaller 1/16 scale batteries (with optional strap)
• Secondary front battery tray accepts smaller 1/16 scale batteries (with optional strap)
• Transmission
• Two speed high/low range with remote shifting
• Dual horizontal shafts
• Twin friction plate slipper clutch
• Easily removed for servicing
• Steering
• Chassis mounted 2075X metal gear digital servo
• Superior 45° steering angle
• Direct steering (no servo saver)
• Steel servo horn
• Steering geometry corrected for bump steer
• Suspension
• Front — 3 link with panhard
• Rear — Triangulated 4 link
• Heavy-duty rod ends with steel hollow balls
• 5 mm diameter steel link rods with 4 mm threaded ends
• Extended Aluminum GTS Shocks
• Oil-filled coilover GTS shocks exclusive to TRX-4 chassis
• Extra-long aluminum bodies for greater articulation
• Threaded bodies with collars easily adjust ride height
• Silky smooth damping for the toughest trails
• O-ring cap seal and dual X-ring shaft seals
• Oversize Wheels and Tires
• 2.2” 8-hole chrome mag wheels with hub inserts
• Pre-mounted 2.2” Canyon Trail tires with trail-tuned foam inserts
• Trail tuned S1 rubber compound
• 12 mm steel hex
• Transmitter
• TQi™ 2.4GHz 4-channel transmitter
• Traxxas Link enabled
• Telemetry ready #6533 5-channel micro receiver with failsafe
• Automatically stores and loads settings for up to 30 Traxxas Link enabled models
• Exclusive Cruise Control feature for extended trail driving
• Adjustable steering and throttle sensitivity (exponential)
• Adjustable steering and throttle endpoints
• High 13ms frame rate and near-zero latency for responsive control
• Patented O-ring sealed watertight receiver box keeps the micro receiver dry
• Sealed Ball Bearings
• Hex hardware with rust-resistant black oxide coating

SPECIFICATIONS:

• Length: 22.20 inches (563mm)
• Front Track: 10.60 inches (270mm)
• Rear Track: 10.60 inches (270mm)
• Center Ground Clearance: 4 inches (99mm)
• Weight (w/o battery): 7.38lbs (3.35kg)
• Height (overall): 10.89 inches (277mm)
• Wheelbase: 13.23 inches (336mm)
• Approach Angle: 70°
• Departure Angle: 52°
• Breakover Angle: 67°
• Front Shock Length: 4.33 inches (110mm)
• Rear Shock Length: 4.33 inches (110mm)
• Front Wheels: 2.2 x 1.34 inches (56 x 34mm)
• Rear Wheels: 2.2 x 1.34 inches (56 x 34mm)
• Front Tires: 5.3 x 2.14 inches (135 x 54mm)
• Rear Tires: 5.3 x 2.14 inches (135 x 54mm)
• Hex Size: 12mm
• Speed Control: XL-5 HV
• Motor (electric): 21T Reverse Rotation
• Transmission: 2-speed Hi-Lo, Remote Shifting
• Gear Pitch: 32P
• Differential Type: 4 Gear, Remote Locking
• Chassis Structure / Material: Steel Ladder Frame with Nylon Composite Crossmembers
• Brake Type: Electronic “Hill Hold”
• Drive System: Shaft Driven 4WD
• Steering: Chassis Mounted Servo
• Servo: 2075X Metal Gear
• Transmitter: TQi™ 2.4 GHz 4-Channel Transmitter
• Receiver: 6533
• Skill Level: 1
• Battery Tray: 158.75 L x 47 W x 23/26mm H
• Motor:
• Type: High-torque brushed motor
• Size: 550
• Weight: 390g (13.76oz)
• Length: 3.071” (78mm) overall length, 2.25” (57mm) can length, 1.532” (38.9mm diameter)
• Turns: 21T reverse rotation
• Voltage: 16.8V
• ESC
• Input Voltage: 6–7 Cells NiMH, 2–3s LiPo
• Case Size: 1.23” W x 2.18” D x 1.04” H
• Weight: 2.6oz (74g)
• Motor Limit: 21-turns (550 size)
• On Resistance Forward: 0.004 Ohms
• On Resistance Reverse: 0.004 Ohms
• Peak Current - Forward: 100A
• Peak Current - Reverse: 100A
• Braking Current: 60A
• Continuous Current: 18A
• BEC Voltage: 6.0 VDC
• BEC Current: 1A
• Power Wire: 14 Gauge / 5”
• Input Harness Wire: 26 Gauge / 14.5”
• Transistor Type: MOSFET
• PWM Frequency: 1700Hz
• Low Voltage Detection (LVD): 2-Stage indicators, switchable (on or off)
• Thermal Protection: Thermal Shutdown
• Profile selection:
• Sport Mode: 100% FWD, 100% brakes, 100% REV
• Race Mode: 100% FWD, 100% brakes, no REV
• Training Mode:* 50% FWD, 100% brakes, 50% REV * Patented
• Trail Mode: 100% FWD, 100% Brake, 100% REV, Trail-Tuned Brake on Neutral
• Crawl Mode: 100% FWD, 100% Instant REV, 100% Brake on Neutral
• Single-button setup: Yes, Traxxas EZ-Set®

INCLUDES:

• TRX-4, Ready-To-Race® model
• XL-5 HV waterproof electronic speed control
• Titan® 21T reverse rotation motor
• TQi™ 2.4GHz radio system with cruise control
• High quality maintenance tools

What You’ll Need:

• Batteries - TRX-4 accepts a wide variety of NiMH (4–7 cell) and LiPo (2s–3s) batteries.
• Charger - Traxxas EZ-Peak® Live charger is recommended for easy and fast charging performance (model #2971).
• AA Alkaline Batteries - Four AA alkaline batteries for the transmitter.

NOTE: Available for in-store pickup on September 2nd, we cannot ship online orders until September 16th.
